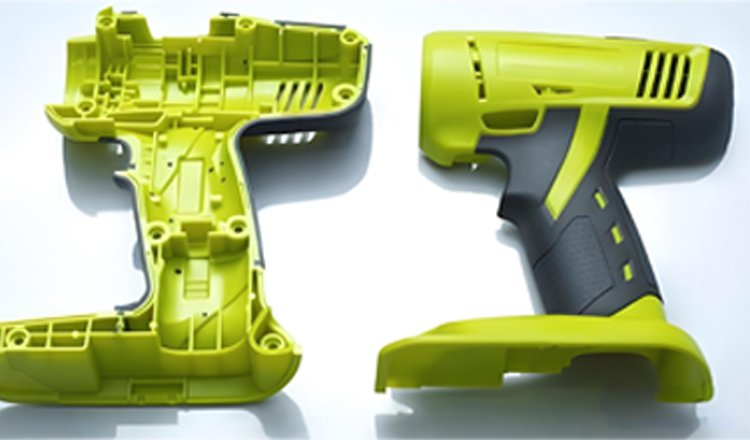

What is Two-Color Injection Molding?
Two-color injection molding is a sophisticated manufacturing technique used to produce parts made from two distinct materials or colors in a single integrated process. This approach is ideal for creating components that require a combination of materials to enhance both functionality and aesthetics, such as soft-touch grips, ergonomic features, and decorative elements. This process provides an effective solution for industries including automotive, medical devices, electronics, and consumer goods.The two-color injection molding process involves two main injection cycles—one for each material—using either a rotating mold or a second injection unit to add the second material over the first. The materials are carefully selected for their complementary properties and are bonded to create a durable, high-quality part.
Two-Color Injection Molding Process
Two-color injection molding combines two different materials into one part through two injection cycles, enhancing functionality and aesthetics.
Material Selection
The first step is to choose the appropriate materials for both the base and overmolding layers. These materials are selected based on mechanical properties, durability, flexibility, and aesthetic needs.
First Injection Cycle
The first material (typically a structural or base material) is injected into the mold. Common materials include engineering plastics like ABS, Nylon, and Polycarbonate.
Mold Rotation or Second Injection
After the first material cools and solidifies, the mold either rotates or shifts to position the part for the second injection. The second material, often a soft-touch or flexible material like TPE or TPU, is injected and adheres to the first material.
Final Cooling and Ejection
Once both materials are injected and cooled, the part is ejected from the mold, resulting in a fully integrated, multi-material component that meets both functional and aesthetic requirements.
Available Materials for Two-Color Injection Molding
Material Type

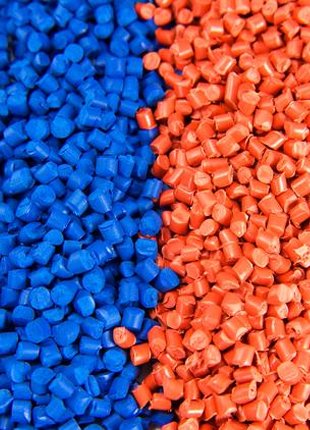

ABS (Acrylonitrile Butadiene Styrene): Properties(Strong, impact-resistant, and easy to mold), Applications(Consumer electronics, automotive parts)
Nylon (Polyamide): Properties(Durable, wear-resistant, and heat-resistant), Applications(Automotive components, industrial parts)
Polycarbonate (PC): Properties(High-strength, optical clarity, and flame-resistant), Applications(Electronics, medical devices)

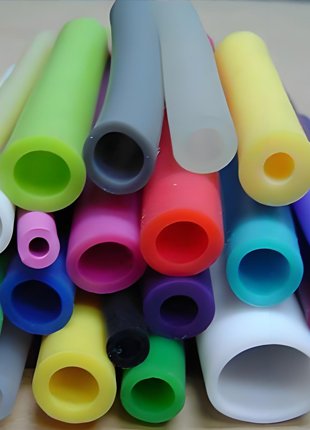

Thermoplastic Elastomers (TPE): Properties(Flexible, soft-touch, and shock-absorbent), Applications(Grips, seals, and soft-touch components)
Thermoplastic Polyurethane (TPU): Properties(Abrasion-resistant, elastic, and durable), Applications(Automotive interiors, medical devices)
Surface Finishing Options for Two-Color Injection Molding
Finish Type
Polished: Details(Smooth, high-gloss finish), Applications(Consumer goods, electronics)
Polished: Details(Smooth, high-gloss finish), Applications(Consumer goods, electronics)
Textured: Details(Matte, non-slip finish), Applications(Handles, industrial components)
Overcoat Painting: Details(Custom color application), Applications(Automotive parts, consumer electronics)
Plating: Details(Metallic, corrosion-resistant surface), Applications(Electronics, automotive components)
Laser Etching: Details(Precise etching for branding or functionality), Applications(Medical devices, electronic parts)
The Advantages of Jucheng Precision's Two-Color Injection Molding
Jucheng Precision offers high-quality, customizable two-color injection molding with fast turnaround, ensuring precision and durability.
- ISO 9001:2015 Certified QualityAs a certified ISO 9001:2015 manufacturer, we ensure that our products meet the highest standards for quality and consistency.
- Expertise in Multi-Material IntegrationJucheng Precision is a leader in two-color injection molding, offering tailored solutions that optimize material bonding and functionality. Our engineers ensure seamless integration of materials for superior performance.
- Advanced TechnologyWe utilize cutting-edge multi-shot and rotary injection molding machines that allow for precise material control and high-quality production of complex components.
- Customizable SolutionsFrom material selection to part design, we provide fully customizable solutions to meet your specific project requirements. We work closely with you to ensure your components fulfill both functional and aesthetic criteria.
- Fast TurnaroundOur efficient processes enable us to deliver prototypes and production parts quickly, ensuring that your projects stay on schedule.

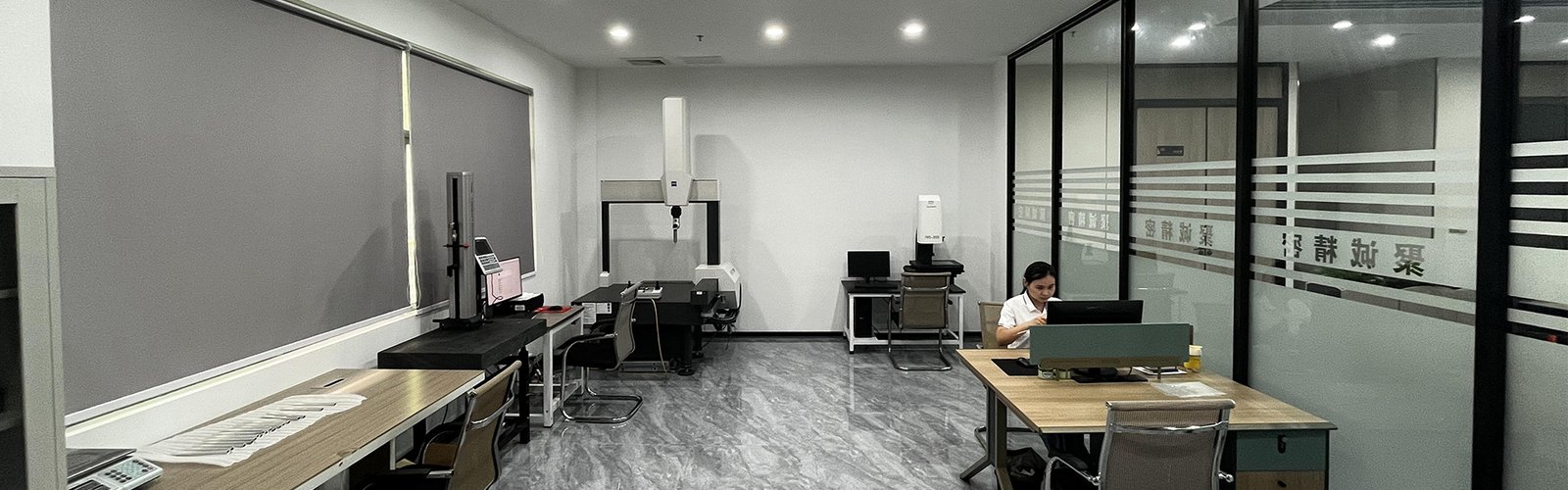

How We Inspect Your Parts
We inspect parts through visual checks, dimensional testing, material bonding, and functional tests.
From Quotation to Delivery: Our Process
From consultation to prototyping, production, quality control, and timely delivery, we ensure precision.
- Initial ConsultationProvide your project details, including part design, materials, and quantity requirements. We assess your needs and propose the best solution.
- Design and PrototypingAfter finalizing the design, we produce a prototype to validate the concept and refine the design for manufacturability.
- ProductionUpon approval, we initiate full-scale production using our advanced injection molding machines.
- Quality ControlWe inspect the parts at multiple stages to ensure they meet your specifications, conducting dimensional and functional tests.
- DeliveryAfter successful quality checks, your parts are packaged and delivered on time, ready for assembly or further processing.
● We adhere to tight tolerances of ±0.05mm for most two-color injection molding projects, ensuring that every part is manufactured to your exact specifications.
● Tolerances can vary depending on the material and design complexity, but we ensure all parts meet the highest standards for precision and functionality.

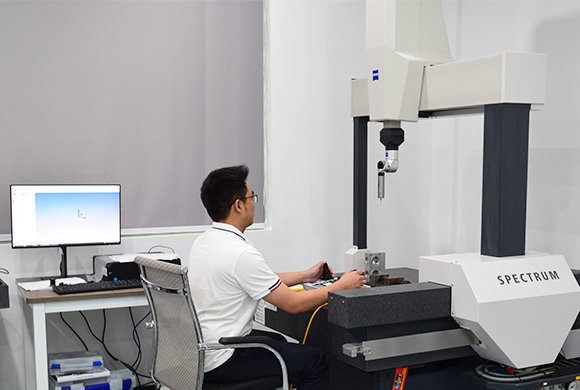

Our Tolerance Requirements
● Prototyping: Jucheng Precision offers rapid prototyping for two-color injection molding, ensuring you can validate your design before moving to full-scale production.
● Fast Production: Once the prototype is approved, we transition quickly to mass production, minimizing delays and keeping your project on schedule.
● Fast Production: Once the prototype is approved, we transition quickly to mass production, minimizing delays and keeping your project on schedule.

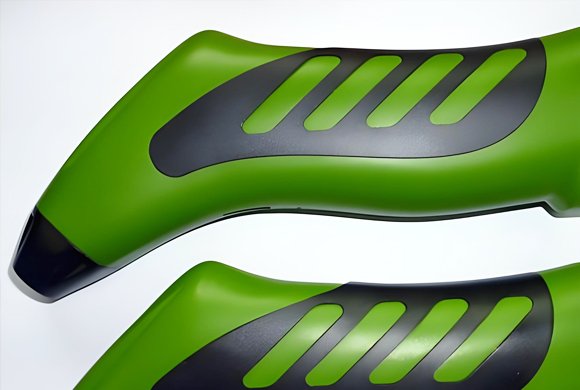

From Prototyping to Fast Production
Comparison: Two-Color Injection Molding vs Other Processes
1 -
- Two-Color Injection MoldingFeatureMaterial Flexibility: Two different materials can be combined in one partApplications: Multi-material parts with aesthetic and functional benefitsCost Efficiency: Higher cost due to complexityDesign Complexity: Complex, multiple-material integration
- Insert MoldingFeature
Material Flexibility: Uses pre-formed inserts with one materialApplications: Electrical components, bushingsCost Efficiency: Lower cost for simple designsDesign Complexity: Moderate, requires insert placement - Standard Injection MoldingFeature
Material Flexibility: Single material injection per part
Applications: Single material parts with simpler designs
Cost Efficiency: Cost-effective for high-volume production
Design Complexity: Simple, single-material design
Industry-Specific Solutions
We provide tailored solutions for automotive, medical, consumer electronics, and industrial applications.
Automotive
Two-color injection molding is ideal for creating durable, ergonomic components like gear knobs, shifters, and seals that require both strength and aesthetic appeal.

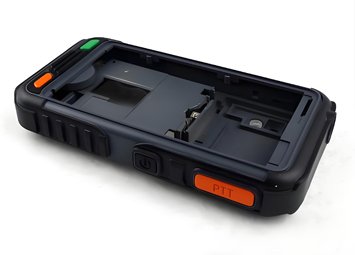

Industrial Applications
Two-color injection molding allows for the creation of robust, multi-material components designed for high-stress environments and complex functional requirements.
Medical Devices
Biocompatible and ergonomic parts, such as soft-touch handles and seals, can be produced with two-color injection molding, ensuring both safety and usability.
Consumer Electronics
Multi-material enclosures and interfaces provide enhanced durability and design flexibility, offering improved protection and aesthetics.
