ABS CNC Machining
CNC Machining ABS is a reliable bridge between design and manufacturing. It combines excellent mechanical properties, low cost, and superior machinability, making it a top choice for creating functional prototypes, low-volume end-use parts, and tooling jigs. By controlling cutting parameters—especially to avoid overheating—you can efficiently produce high-quality plastic components.
ABS CNC Machining

ABS Material Overview

ABS (Acrylonitrile Butadiene Styrene) is a widely used thermoplastic polymer. It is a terpolymer, meaning its properties come from three monomers:
  • A (Acrylonitrile): Provides hardness, strength, heat, and chemical resistance.
  • B (Butadiene): Provides toughness and impact resistance.
  • S (Styrene): Provides rigidity, ease of processing, and a glossy surface finish.
This combination makes ABS an excellent candidate for CNC machining.

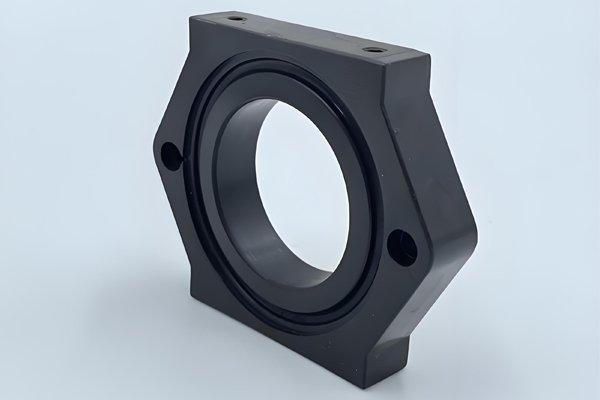

ABS CNC Machining - Start Your Precision Project Today

Advantages of CNC Machining ABS

CNC machining ABS is popular because its material properties are highly compatible with machining requirements:
Advantage Description
Excellent Machinability ABS offers a great balance of strength and hardness. It machines cleanly without being too difficult (like metal) or too soft/gummy (like some plastics), resulting in a good surface finish.
Good Dimensional Stability ABS has low moisture absorption, meaning it won't swell or warp easily during machining, helping to maintain precise part dimensions.
High Strength & Toughness The machined parts can withstand structural loads and impacts, making them suitable for functional prototypes and end-use parts.
Ease of Post-Processing ABS parts can be easily sanded, polished, painted, plated, or bonded to achieve the desired appearance and functionality.
Cost-Effectiveness ABS is an inexpensive material, and its ease of machining keeps overall production costs low.

Technical Parameters & Material Properties

The following table outlines key properties of ABS that influence machining strategy and part performance:
Property Typical Value/Range Test Standard Machining Implication
Density 1.02 - 1.06 g/cm³ ASTM D792 Results in lightweight parts.
Tensile Strength 40 - 50 MPa ASTM D638 Indicates a sturdy material; requires appropriate cutting parameters.
Flexural Strength 65 - 70 MPa ASTM D790 Parts have good resistance to bending.
Impact Strength (Izod Notched) 20 - 25 kJ/m² ASTM D256 High toughness means it's less prone to cracking or chipping during machining.
Rockwell Hardness R 105 - 115 ASTM D785 Provides decent surface wear resistance.
Heat Deflection Temperature (HDT) 90 - 105 °C ASTM D648 Critical Parameter: Heat generated during cutting must be kept below this to prevent softening.
Shrinkage Rate 0.4 - 0.7% - Primarily relevant for injection molding, not CNC machining.

CNC Machining Guidelines for ABS

To achieve the best results, follow these key practices:
Tool Selection:
  • Type: Use 2-flute or 3-flute end mills.
  • Material: Carbide tools are sufficient for most jobs. For high-volume or high-finish requirements, diamond-coated tools offer longer life and a superior surface finish.
  • Geometry: Sharp cutting edges and good flute volume aid in efficient chip evacuation, preventing heat buildup.
Cutting Parameters:
  • Cutting Speed (SFM): Medium to high speeds.
  • Feed Rate: Use medium to high feed rates. Feeding too slowly causes friction and heat, melting the plastic instead of shearing it, leading to a poor surface finish.
  • Depth of Cut: Can handle moderate depths of cut.
  • Coolant: Compressed air is highly recommended. It cools the tool/workpiece and evacuates chips. Avoid water-based coolants as ABS can absorb moisture, which can affect subsequent bonding or painting.
Workholding: Due to its lower rigidity compared to metal, use uniform clamping force to avoid distorting or damaging the part.

Application Scenarios

CNC machined ABS is widely used across industries for producing high-precision, strong plastic parts rapidly:
  • Functional Prototypes: For testing form, fit, function, and durability.
  • Mechanical Components: Gears, bearing housings, enclosures, jigs, and fixtures.
  • Automotive Parts: Interior prototypes, vents, ducts.
  • Electronics Housings: Prototypes and low-volume production for radios, remotes, instruments.
  • Consumer Products: Design and validation of toys, household items.

Physical Properties Table

Depending on specific needs, consider these alternatives:
Requirement Recommended Alternative
Higher Heat Resistance PC (Polycarbonate), PEEK, Nylon
Higher Stiffness/Hardness PC (Polycarbonate), PMMA (Acrylic)
Better Chemical Resistance PP (Polypropylene), POM (Acetal/Delrin)
Higher Impact Toughness PC (Polycarbonate), ABS/PC Blend
Learn more about ABS material resources
