Aluminum Alloy 5083 CNC Machining Material
Aluminum Alloy 5083 is widely recognized as the premier "Marine Grade" alloy. As a high-magnesium alloy, it offers the highest strength of all non-heat-treatable aluminum grades. It is legendary for its exceptional performance in extreme environments, resisting corrosion from seawater and industrial chemicals better than 6061. At JUCHENG, we specialize in machining heavy-duty 5083 plates and blocks. Whether for shipbuilding components, cryogenic pressure vessels, or military vehicle armor, our facility ensures that the material's structural integrity and corrosion-resistant properties are preserved throughout the machining process.

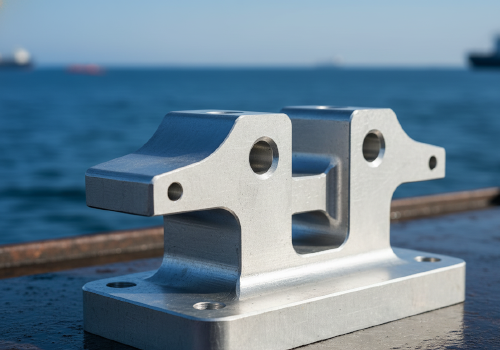

Aluminum Alloy 5083 Material
JUCHENG's 5083 Machining Capabilities
Machining 5000-series alloys requires specific attention to chip management and surface finish. We offer:
- Large Plate Machining: 5083 is often used for large structural panels. Our large-gantry CNC machines can handle oversized plates up to 3 meters in length.
- Weld Preparation: Since 5083 is frequently welded, we provide precision CNC beveling and edge preparation to ensure perfect fit-up for subsequent welding operations.
- Cryogenic Components: We machine parts destined for LNG (Liquefied Natural Gas) applications, ensuring strict adherence to dimensional tolerances required for low-temperature sealing.
- Stress-Free Processing: We utilize the H111 temper, which offers good stability, and employ machining strategies that minimize residual stress induction.
Advantages of CNC Machining 5083
| Advantage | Detailed Description | Key Benefit |
| Ultimate Corrosion Resistance | Exceptional resistance to seawater, industrial chemicals, and atmospheric attack. | The #1 choice for marine hardware, ship hulls, and subsea robotics. |
| High Strength (Non-Heat Treatable) | Significantly stronger than 5052 and 3003. Retains high strength after welding. | Suitable for structural applications where heat treatment (like T6) is not feasible. |
| Excellent Weldability | Retains most of its strength in the Heat Affected Zone (HAZ). | Perfect for complex assemblies that combine machining and welding. |
| Cryogenic Toughness | Unlike steel which becomes brittle, 5083 becomes stronger and tougher as temperatures drop. | Ideal for cryogenic tanks, LNG transport, and refrigeration equipment. |
| Good Machinability | While "gummier" than 6061, it can be machined rapidly with correct tooling. | Cost-effective production of large, robust parts. |
Technical Parameters & Material Standards
We process 5083 in tempers optimized for stability and corrosion resistance:
| Grade Category | Specification | Characteristics & Ideal Uses |
| Aluminum 5083-H111 | Standard Structural | Some work hardening by shaping, but less than H32. The most common temper for machined plates. Good dimensional stability. Uses: General marine structures, vehicle bodies, pressure vessels. |
| Aluminum 5083-H116 | Marine Special | Specially processed to provide improved resistance to exfoliation corrosion. Mandatory for underwater or waterline marine applications. Uses: Boat hulls, high-speed patrol boats, offshore platforms. |
| Aluminum 5083-O | Annealed (Soft) | Highest ductility but lowest strength. Used where maximum forming is required before machining. Uses: Deep drawn parts, complex formed shapes. |
CNC Machining Guidelines for 5083
- Built-Up Edge (BUE): 5083 is softer and gummier than 6061. Aluminum tends to stick to the tool. We use highly polished, sharp carbide tools and flood coolant to prevent BUE.
- Surface Finish: It does not achieve the same "mirror" shine as 6061 or 7075 easily. The finish is typically a clean, satin industrial matte.
- Anodizing: 5083 can be anodized for protection, but the finish may appear yellowish or dark grey due to the magnesium content. It is often painted or powder coated in marine applications.
- Chip Breaking: Chips can be long and stringy. Chip-breaking cycles are programmed to ensure smooth automated operation.
Application Scenarios
- Marine & Shipbuilding: Masts, cleats, engine mounts, hull stiffeners, desalinations plants.
- Pressure Vessels: Unfired welded pressure vessels, storage tanks.
- Rail & Transport: Rail coach bodies, truck tip bodies (dump trucks).
- Military: Armor plates for personnel carriers (due to high toughness).
- Energy: LNG storage tanks, drilling rig components.
Physical Properties Table
Comparison: 5083-H111 vs 5052-H32 (The 5000 series siblings):
| Property | Aluminum 5083-H111 | Aluminum 5052-H32 | Unit |
| Density | 2.66 | 2.68 | g/cm³ |
| Tensile Strength | 275 - 350 | 228 | MPa |
| Yield Strength | 125 - 200 | 193Hardness (Brinell) | MPa |
| Fatigue Strength | 75 | 60 | HB |
| Corrosion Resistance | Excellent | Very Good | - |
| Weldability | Excellent | Excellent | - |
