Titanium Grade 5 (Ti-6Al-4V) CNC Machining: The Ultimate Aerospace & Medical Alloy
When engineering designs demand the highest strength-to-weight ratio available in commercial metals, Titanium Grade 5, also known as Ti-6Al-4V, is the undisputed material of choice. As an alpha-beta titanium alloy, it accounts for over half of global titanium usage. It offers the strength of high-grade steel but is nearly 50% lighter, coupled with outstanding corrosion resistance and complete biocompatibility. At JUCHENG, we have mastered the complex machining dynamics of this formidable alloy. Utilizing our advanced 5-axis CNC machining centers and rigorous thermal management strategies, we transform solid titanium billets into flight-critical aerospace structures, high-performance racing components, and life-saving medical implants.

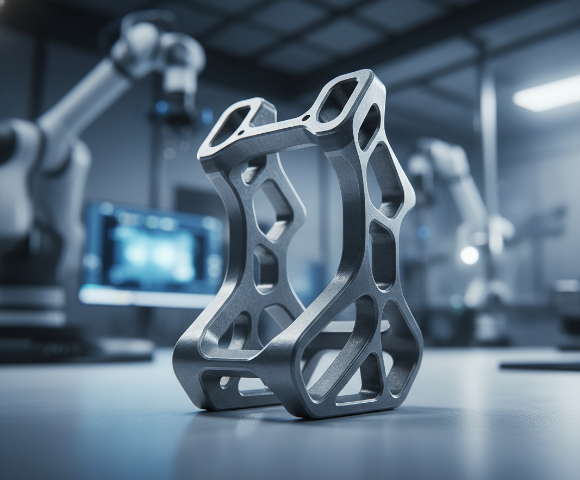

Titanium Grade 5
JUCHENG's Titanium Ti64 Fabrication Capabilities
Titanium’s notoriously low thermal conductivity and tendency to work-harden make it incredibly challenging to machine. We ensure precision through specialized capabilities:
- Rigid 5-Axis Machining: To produce the complex, organic shapes often required for aerospace and medical parts, we utilize heavy-duty 5-axis milling centers that eliminate vibration and chatter, ensuring micron-level positional accuracy.
- Advanced Thermal Management: Because Ti-6Al-4V transfers cutting heat into the tool rather than the chip, we utilize high-pressure, through-spindle coolant systems to rapidly dissipate heat, preventing tool failure and surface metallurgical damage.
- Specialized Tooling: We employ premium micro-grain carbide and polycrystalline diamond (PCD) tools with specific geometries designed to shear titanium cleanly, avoiding the "galling" and built-up edge (BUE) effects common with this alloy.
- Surface Integrity Verification: We carefully control cutting speeds and feeds to prevent the formation of an alpha-case (a brittle, oxygen-enriched surface layer), ensuring the fatigue life of your critical components is never compromised.
Advantages of CNC Machining Titanium Grade 5
| Advantage | Detailed Description | Key Benefit |
| Highest Strength-to-Weight Ratio | Yields strength comparable to hardened steel (~880 MPa) while weighing 45% less. | Critical for aerospace weight reduction, lowering fuel consumption and increasing payload. |
| Exceptional Biocompatibility | Completely non-toxic, hypoallergenic, and capable of osseointegration (bonding directly with human bone). | The absolute standard for orthopedic implants, bone screws, and dental fixtures. |
| Superior Corrosion Resistance | Forms a stable, highly adherent, and protective oxide film instantly upon exposure to oxygen. | Impervious to seawater, chlorides, and most industrial acids; ideal for marine hardware. |
| High Heat Resistance | Retains its mechanical properties at elevated temperatures up to 400°C (750°F). | Excellent for jet engine compressor blades and motorsport exhaust components. |
| Heat Treatability | Can be solution treated and aged (STA) to further increase its strength. | Allows engineers to tailor the mechanical properties for specific high-stress applications. |
Technical Parameters & Material Conditions
We machine Ti-6Al-4V to meet stringent industry-specific certifications:
| Grade Category | Specification | Characteristics & Ideal Uses |
| Titanium Grade 5 | Ti-6Al-4V (Standard) | Characteristics: The workhorse alloy. Contains 6% Aluminum and 4% Vanadium. Excellent balance of strength, toughness, and ductility. Uses: Aircraft turbines, structural airframe components, high-performance engine valves, marine fasteners. |
| Titanium Grade 23 | Ti-6Al-4V ELI | Characteristics: Extra Low Interstitial (ELI) variant of Grade 5. Contains lower levels of oxygen, carbon, and iron. Offers improved ductility, fracture toughness, and superior biocompatibility. Uses: Surgical implants, orthopedic pins, cryogenic aerospace vessels, medical instrumentation. |
CNC Machining Guidelines for Ti-6Al-4V
- Low Speeds, High Feeds: We program our CNC machines with lower surface speeds (RPM) but maintain a heavy, constant feed rate. This ensures the tool stays under the work-hardened layer and removes material efficiently.
- Never Dwell: Stopping or dwelling the cutting tool against a titanium surface will cause instant friction and work-hardening, destroying the tool on the next pass. Continuous tool engagement is mandatory.
- Galling Prevention: Titanium has a strong chemical reactivity with cutting tools at high temperatures (galling). Copious amounts of high-lubricity coolant are critical to prevent the metal from welding to the cutter.
- Thin-Wall Machining: Titanium's relatively low modulus of elasticity means it can spring back or deflect during machining. We use specialized workholding and balanced tool paths to machine extremely thin-walled aerospace features accurately.
Application Scenarios
- Aerospace & Defense: Jet engine compressor discs, helicopter rotor hubs, wing spars, missile structural components, and high-strength fasteners.
- Medical & Dental: Hip and knee joint replacements, spinal fusion cages, bone trauma plates, pacemakers, and surgical tools.
- Motorsports: Connecting rods, valve retainers, suspension wishbones, and lightweight structural brackets for F1 and rally cars.
- Marine & Offshore: Subsea ball valves, propeller shafts, ROV (Remotely Operated Vehicle) housings, and desalination equipment.
Physical Properties Table
Typical mechanical properties for Annealed Ti-6Al-4V:
| Property | Hastelloy C276 (UNS N10276) | Titanium Grade 2 (CP) | Unit |
| Density | 4.43 | 4.51 | g/cm³ |
| Tensile Strength (Ultimate) | 950 | 345 | MPa |
| Yield Strength | 880 | 275 | MPa |
| Elongation at Break | 14 | 20 | % |
| Hardness (Rockwell C) | 36 | 80 (HRB) | HRC |
| Thermal Conductivity | 6.7 | 16.4 | W/m-K |
| Biocompatibility | Excellent (Grade 23 ELI) | Excellent | - |
