Plating on ABS Plastic Guide: Mastering Chromic Acid Etching

Delivering the premium, heavy aesthetic of solid polished metal while maintaining the ultra-lightweight characteristics of industrial polymers represents the ultimate holy grail for automotive and sanitary hardware designers. Slapping cheap metallic spray paint onto a raw plastic bumper looks terrible and immediately chips away under minimal physical handling. Executing a flawless, permanent metallic bond strictly requires referencing a hardcore industrial plating on abs plastic guide before finalizing your manufacturing blueprints.

Procuring these highly complex cosmetic finishes forces procurement managers to navigate a dangerous chemical minefield. Securing legitimate electroplating requires transforming a fundamentally non-conductive piece of raw ABS (Acrylonitrile Butadiene Styrene) into a highly conductive substrate capable of accepting heavy electrical currents. Skipping critical neutralization steps during this violent chemical conversion guarantees the shiny metallic crust will physically blister and peel away within weeks.

Mastering exactly how specialized plastics react to boiling caustic acids separates amateur prototyping shops from global supply chain heavyweights. Attempting to plate heavily stressed, highly porous materials inevitably traps toxic chemicals deep inside the geometry, causing horrifying downstream corrosion. Hardware engineering veterans relentlessly enforce strict design rules to ensure every single polymer component physically survives the punishing chemical vats.

Operating deep inside the Shenzhen precision manufacturing hub equips our quality control team to eliminate these surface treatment disasters entirely. We actively reject compromised CAD files that feature impossible blind holes or liquid-trapping geometries long before they reach the plating line. Deploying this uncompromising engineering authority ensures your premium retail components arrive with a flawless, mirror-like finish that survives brutal physical environments.

content:

Mastering Aggressive Chromic Acid Etching
   Defeating Violent Thermal Expansion Peeling
   Executing Flawless Electroless Copper Deposition
   JUCHENG Hub: Dominating Heavy Chemical Processing
   Frequently Asked Questions: Chemical Adhesion

Mastering Aggressive Chromic Acid Etching

Why must smooth plastic components be dipped into boiling toxic acid before plating?
Metal atoms absolutely cannot bond to smooth plastics. Boiling the part in caustic acid chemically eats away specific molecules on the surface, creating millions of microscopic, jagged caverns that act as mechanical anchoring points for the metal.

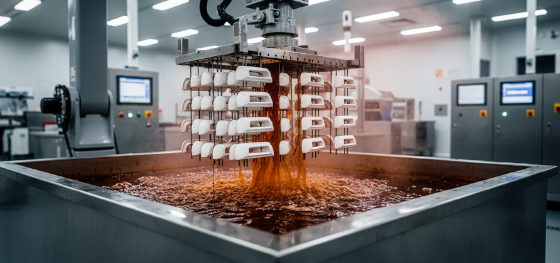

Controlling the violence of chromic acid etching dictates the ultimate success or failure of your entire cosmetic batch. Acrylonitrile Butadiene Styrene possesses a highly unique molecular structure containing microscopic butadiene rubber particles suspended inside a rigid plastic matrix. The extreme acidic bath aggressively attacks and dissolves only these soft rubber particles, leaving behind a heavily cratered, sponge-like microscopic landscape.

Leaving the plastic component submerged inside the boiling acid tank for just thirty seconds too long completely destroys the structural integrity of the part. Over-etching melts the underlying plastic skeleton entirely, turning precision mounting brackets into useless, degraded mush. Elite factory technicians deploy strictly automated robotic hoists to guarantee absolute second-by-second timing accuracy during this terrifying chemical phase.

Substituting alternative engineering materials frequently triggers catastrophic adhesion failures. Attempting to utilize this exact chemical process on standard Polycarbonate (PC) yields terrible results because it lacks the specific butadiene rubber particles necessary to create the microscopic anchoring caverns. Specifying the correct plating-grade polymer formula upfront strictly protects your operational budget from massive scrap rates.

Defeating Violent Thermal Expansion Peeling

Will a perfectly plated plastic badge survive being baked in the hot summer sun?
Only if the engineering team successfully calculated the mechanical stress variables. Plastics expand under heat significantly faster than rigid metals, creating massive internal sheer forces that physically tear the heavy metallic coating straight off the substrate.

Surviving unpredictable environmental weather absolutely demands defeating thermal expansion peeling before shipping the product. When an automotive door handle bakes at sixty degrees Celsius, the underlying polymer aggressively swells and expands outward. Because the rigid exterior chrome layer refuses to stretch, the violent internal kinetic energy forcibly rips the microscopic anchoring bonds completely apart, leaving ugly flaking blisters.

Mitigating this destructive physics forces electroplating facilities to heavily engineer the intermediary metallic layers. Instead of depositing rigid chrome directly onto the raw plastic, technicians first apply a highly ductile, semi-flexible layer of pure copper. This specialized copper strike acts as a critical microscopic shock absorber, physically stretching and flexing to absorb the violent thermal mismatch between the plastic and the final chrome crust.

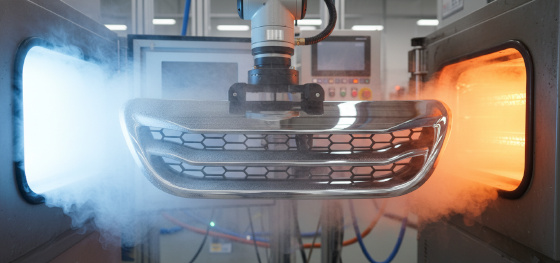

Evaluating comprehensive environmental test data remains absolutely non-negotiable for automotive and aerospace procurement teams. Facilities must heavily subject finalized beta components to brutal thermal shock testing, repeatedly plunging the parts from boiling water directly into freezing cryogenic baths. Passing these merciless stress tests proves the chemical adhesion actually meets rigorous global manufacturing standards.

Substrate Manufacturing Method	Internal Material Density	Acid Bleed-Out Risk	Electroplating Success Rate
Injection Molding	100% Solid Monolithic	Zero (No internal voids)	Maximum (Industry standard for chrome)
CNC Machining (Extruded Billet)	100% Solid Monolithic	Very Low	Excellent (Requires high-polish milling)
3D Printing (FDM Extrusion)	Highly Porous (Layer gaps)	Extreme (Traps toxic chemicals)	Catastrophic (Finish peels within days)
Vacuum Casting (Polyurethane)	Dense but chemically incompatible	Low	Poor (Cannot properly etch the rubber matrix)

Executing Flawless Electroless Copper Deposition

How do technicians attach electrical wires to a piece of plastic without it instantly melting?
They don't attach wires to bare plastic. Operators utilize a specialized chemical bath to grow a thin layer of conductive metal across the entire surface entirely without electricity, fundamentally turning the plastic into a metallic conductor.

Initiating electroless copper deposition forms the absolute most critical phase of this entire operation. After etching the microscopic caverns into the polymer, technicians forcefully seed the plastic surface with highly expensive palladium catalysts. Submerging the seeded plastic into a chemical copper bath triggers an aggressive auto-catalytic reaction, slowly growing a highly conductive, thin copper shell completely around the raw part.

Skipping rigorous neutralization washes before this phase ruins the plating tank instantly. If any residual chromic acid remains trapped inside blind threaded holes, it will violently leak out and poison the delicate palladium catalyst bath. This terrifying chemical cross-contamination immediately shuts down the entire automated factory line, costing hundreds of thousands of dollars in ruined chemicals.

Reading a generic plating on abs plastic guide rarely warns engineers about the dangers of sharp internal corners. Electrical current naturally concentrates heavily on sharp exterior spikes while completely ignoring deep interior crevices. Designers must heavily radius all sharp edges within their CAD files to guarantee the final heavy nickel and chrome layers distribute evenly without causing ugly, burnt metallic buildup on the corners.

JUCHENG Hub: Dominating Heavy Chemical Processing

Why do elite hardware startups strictly avoid using 3D printed components for electroplating runs?

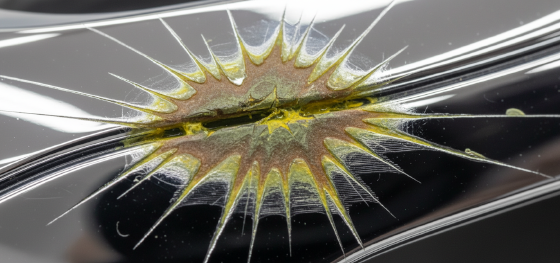

Layered printing naturally creates millions of microscopic internal voids. These voids act like sponges, aggressively trapping the boiling caustic acid. Days later, the trapped acid bleeds out, permanently ruining the shiny metallic finish.

Partnering with Jucheng Precision ensures your underlying substrate physically survives the heavy chemical vats. We aggressively steer clients away from porous additive technologies when premium cosmetic plating is required. We utilize heavy 5-axis CNC machining to carve absolutely dense, monolithic polymer billets that entirely reject internal chemical absorption.

Executing uncompromising Design for Manufacturability (DFM) audits protects your corporate treasury from horrific scrap rates. We actively identify impossible blind holes and dangerous sharp corners before cutting any physical material. Controlling the entire manufacturing lifecycle under one massive Shenzhen roof ensures your premium automotive and consumer electronics arrive flawlessly finished and perfectly tolerant.

Frequently Asked Questions: Chemical Adhesion

Does the final layer of shiny chrome actually protect the part from severe physical scratches?
Yes. While the intermediate copper and nickel layers provide anti-corrosion protection and deep brilliant color, the final microscopic flash of hexavalent or trivalent chromium provides immense surface hardness, aggressively resisting severe daily physical abrasion.

Why does the electroplating process drastically change the dimensions of my precision threaded holes?
Chemical deposition physically grows distinct layers of heavy metal across the entire exterior surface, actively shrinking internal hole diameters. Precision programmers must deliberately oversize threaded holes during the initial CNC machining phase to mathematically accommodate this inevitable metallic growth.

Is it possible to selectively plate only one specific half of a plastic enclosure?
Yes, but it heavily increases manual labor costs. Technicians must meticulously hand-paint specialized chemical-resistant masking resins over the areas designated to remain raw plastic. After the violent plating process finishes, workers must peel this protective masking away entirely by hand.
