High-Precision Fiber Laser Cutting Services
Laser cutting is the first and most critical step in precision sheet metal fabrication. It defines the edge quality and dimensional accuracy of the final part. At JUCHENG, we utilize advanced high-power Fiber Laser Cutting Machines (4kW - 12kW) to slice through metals with incredible speed and precision. Unlike traditional CO2 lasers, our fiber technology allows us to cut highly reflective materials like Aluminum and Copper without damaging the optics. Whether you need intricate flat patterns for electronic chassis or heavy-gauge plates for structural brackets, our laser cutting service delivers burr-free edges and tight tolerances ready for bending or assembly.

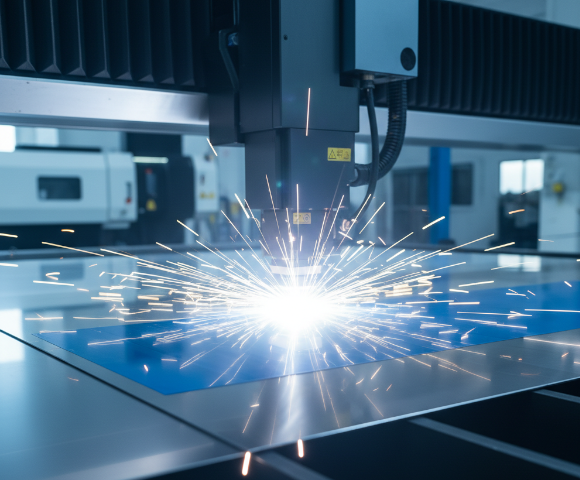

Laser Cutting Service
JUCHENG’s Laser Cutting Capabilities
We configure our laser cutting department for versatility and quality:
- Material Thickness: We can cut Stainless Steel up to 20mm, Aluminum up to 16mm, Carbon Steel up to 25mm, and Copper/Brass up to 10mm.
- Precision Tolerances: We achieve standard cutting tolerances of ±0.05mm to ±0.1mm, ensuring precise fit-up for subsequent welding or assembly.
- Oxide-Free Cutting: By using high-purity Nitrogen (N2) assist gas, we produce clean, silver edges on Stainless Steel and Aluminum, eliminating the need for secondary grinding or oxide removal before painting.
- Large Format: Our bed sizes accommodate sheets up to 3000mm x 1500mm, perfect for large enclosures and panels.
- Etching: The laser can be dialed down to etch part numbers, logos, or bend lines directly onto the part surface for identification.
Product Gallery Categories

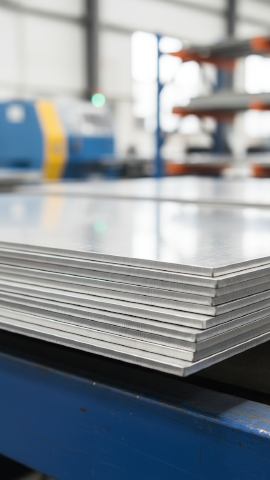

Clean-Cut Stainless Steel
Reflective Metal Cutting

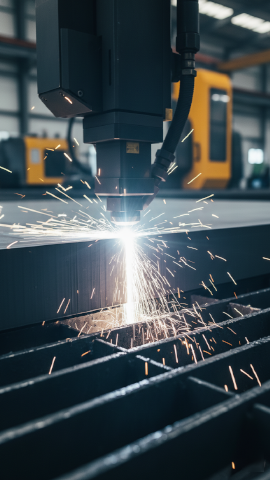

Heavy Gauge Plates

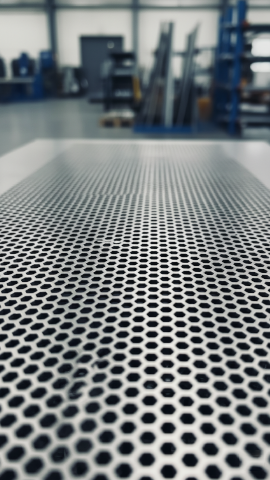

Intricate Perforated Patterns

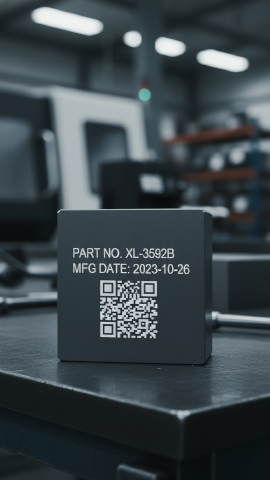

Etching & Marking
Materials Available
Materials We Cut
Our fiber lasers are optimized for a wide range of sheet metals:
Our fiber lasers are optimized for a wide range of sheet metals:
| Material Class | Recommended Grades | Cutting Characteristics |
| Stainless Steel | 304, 316L, 430 | Nitrogen cutting ensures rust-free, clean edges ideal for food/medical use. |
| Aluminum | 5052, 6061, 3003 | High speed cutting. We leave the PVC film on to prevent surface scratches. |
| Carbon Steel | SPCC, Q235, SECC | Oxygen cutting for thick plates (speed); Nitrogen for thin sheets (clean edge). |
| Copper & Brass | C11000, C26000 | Fiber lasers handle these reflective metals easily, unlike older CO2 lasers. |
| Pre-Plated Steel | SGCC, SECC | We optimize settings to minimize damage to the zinc coating near the cut zone. |
Comparison
Comparison: Laser Cutting vs. Punching vs. Waterjet
Why choose Laser Cutting over other profiling methods?
Why choose Laser Cutting over other profiling methods?
| Feature | Fiber Laser Cutting | CNC Punching | Waterjet Cutting |
| Edge Quality | Excellent (Smooth) | Good (Nibble marks possible) | Good (Sandblasted texture) |
| Geometry | Any Shape (Complex curves) | Limited by tool shapes | Any Shape |
| Speed | Very Fast (Thin/Med sheet) | Fast (Holes/Rectangles) | Slow |
| Tooling Cost | Zero | Medium (Requires dies) | Zero |
| Heat Effect | Small Heat Affected Zone | None (Cold process) | None (Cold process) |
| Best For | Prototypes to Mid-Volume, Complex profiles | High Volume, perforated panels | Very thick materials (>30mm) |
Why Choose Us
The JUCHENG Laser Advantage
- Burr-Free Guarantee: We finely tune our focal length and gas pressure to minimize dross. Any remaining micro-burrs are removed via our automated deburring machine (TimeSaver).
- Nesting Efficiency: Our advanced CAM software optimizes part layout on the sheet ("Nesting") to minimize material waste, saving you money on raw material costs.
- Scratch Protection: For cosmetic parts (like brushed stainless or anodized aluminum), we cut with the protective film intact to ensure a pristine surface.
- Fast Turnaround: With no tooling to make, we can go from DXF file to cut parts in hour
Advantages
Benefits of Laser Cutting Technology
- Precision: Capable of cutting holes as small as the material thickness with excellent positional accuracy.
- Flexibility: No hard tooling required. Design changes are as simple as updating the CAD file.
- Contactless: The cutting head never touches the material, preventing mechanical distortion on thin sheets.
- Clean Edges: High-quality cuts often require no secondary grinding, speeding up the welding process.
Industries Served
Industries Relying on Laser Cut Parts
- Electronics: Custom chassis, front panels, and internal brackets.
- Automotive: Protoype body panels, structural flanges, and exhaust components.
- Medical: High-precision stainless steel trays and device enclosures.
- Architecture: Decorative screens, signage, and elevator cladding.
- Industrial: Machine guards, shims, and heavy-duty base plates.
