ABS Axson PX100 for Vacuum Casting Material
Axson PX100 is a versatile polyurethane resin engineered specifically for vacuum casting, offering low viscosity (150–300 mPa·s) for bubble-free filling and rapid curing (1–2 hours demold). It replicates engineering thermoplastics like ABS/PP across Shore A 50–D 80 hardness, with tensile strength of 25–50 MPa, elongation up to 350%, and heat resistance to 120°C. Available in standard/custom colors (including metallic/translucent effects), it excels in producing functional prototypes and low-volume batches (20–50 parts/mold) for automotive, electronics, and medical applications. While cost-effective for ≤100-unit runs and capable of <0.1-mm detail resolution, its silicone molds degrade after 15–30 uses, and prolonged >120°C exposure is inadvisable. Primary alternatives include Smooth-On Task Series and Polytek Poly 74xx resins.
Axson PX100

Basic Characteristics & Composition

Axson PX100 is a high-performance polyurethane (PU)-based resin engineered for vacuum casting. It replicates the mechanical, thermal, and aesthetic properties of engineering-grade thermoplastics (e.g., ABS, PP) or elastomers. Key characteristics include:
  • Low viscosity (typically 150–300 mPa·s) for bubble-free filling in vacuum environments.
  • Rapid curing: Demolding in 1–2 hours, enabling 24-hour production cycles.
  • Dual-component system: Precisely mixed Isocyanate (Part A) and Polyol (Part B) resins.

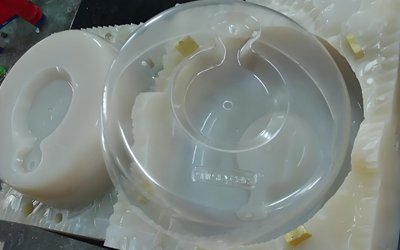

ABS Axson PX100 for Vacuum Casting Material

Color Options

PX100 offers versatility in pigmentation:
Standard Colors Custom Options Special Effects
Black, White, Gray Pantone-matched Translucent, Glow-in-the-dark
Ivory, Beige Metallic finishes Rubber-like textures

Key Technical Parameters

PHYSICAL PROPERTIES
PART A PART A MIXING
Composition ISOCYANATE POLYOL
Mixing ratio by weight 100 100
Aspect liquid liquid liquid
Colour light to dark amber yellow straw Off-white
Viscosity at 25°C (mPa.s) BROOKFIELD LVT 60 175 100
Specific gravity at 25°C
Specific gravity at 23°C		 ISO 1675 :1975
ISO 2781 :1988		 1.15
-		 1.02
-		 -
1.06
Pot life at 25°C on 200g (min.) - 15

PROCESSING
Weigh according to the indicated ratio. Mix until a homogeneous and transparent mixing is obtained. Degas for 5 minutes. Cast in a silicone mold at room temperature or pre-heated at 95° F/(35° C) – 104° F/(40° C) to accelerate the process. After demolding cure 2 hours at 158° F/(70° C) in order to obtain the optimal properties.
PRECAUTIONS
Normal health and safety precautions should be observed when handling these products :
. ensure good ventilation
. wear gloves and safety glasses
For further information, please consult the material safety data sheet.
MECHANICAL PROPERTIES AT 73° F/(23° C) AFTER POSTCURE
Flexural modulus of elasticity ISO 178 :2001 Psi/(MPa) 218,000/(1,500)
Maximal flexural strength ISO 178 :2001 Psi/(MPa) 8,000/(55)
Maximal tensile strength ISO 527 :1993 Psi/(MPa) 5,800/(40)
Elongation at break ISO 527 :1993 % 20
CHARPY impact strength ISO 179/2D :1994 ft.Lb.f/in2 /( kJ/m2 ) 12/(25)
Izod impact strength - notched ASTM D 256-05 ft.Lb.f/in2 /( kJ/m2 ) 2/(4)
Izod impact strength - unnotched ASTM D 256-05 ft.Lb.f/in2 /( kJ/m2 ) 8/(16)
Hardness - at 73° F/(23° C)
                 - at 176° F/(80° C)		 ISO 868 :1985 Shore D1 74
65
THERMAL & SPECIFIC PROPERTIES
Glass temperature transition TMA METTLER °F/(°C) 167/(75)
Linear shrinkage - % 0.4
Maximal casting thickness - In./(mm) 0.2/(5)
Demolding time @ 23°C - Hours 4
Complete hardening time @ 23°C - days 4
  • Average values obtained on standard specimens/Postcure 12 hr at 158° F/(70° C)

    STORAGE
Shelf life is 6 months for PART A (Isocyanate) and 12 months for PART B (Polyol) in a dry place and in original unopened containers at a temperature between 60° F/(15° C) and 77° F/(25° C). Any open container must be tightly closed under dry nitrogen blanket.

Application Scenarios & Fields

Prototyping: Functional prototypes mimicking injection-molded parts (e.g., housings, gears).
Low-Volume Production: Batches of 20–50 parts per silicone mold1.
Industries:
  • Automotive: Ducts, gaskets, interior trim.
  • Consumer Electronics: Buttons, casings, wearables.
  • Medical: Simulated devices (biocompatible grades available).

Vacuum Casting Process Compatibility

PX100 excels in vacuum casting due to:
  • Vacuum Stability: Minimal entrapped air; achieves ISO 21920-compliant surface finishes1.
  • Mold Compatibility: Bonds cleanly with silicone molds (e.g., Tin-cure or Plat-cure RTV).
  • Process Workflow:
  1. Degas resin components under vacuum.
  2. Inject into silicone mold at 20–40 mbar.
  3. Cure at 40–70°C.

Advantages vs. Limitations

Advantages Limitations
▶ Cost-effective for batches < 100 units ◐ Mold life: 15–30 uses
▶ Wide material flexibility (rigid to soft) ◐ Not suitable for >120°C long-term
▶ Detail resolution: < 0.1 mm features ◐ Post-curing required for optimal properties

Manufacturers & Alternatives

Primary Supplier: Axson Technologies (now part of Sartomer, a division of Arkema)1.
Direct Alternatives:
  • Smooth-On Task Series (e.g., Task 9).
  • Polytek Poly 74xx Series.
  • Huntsman RenShape PU.
Material Selection Note: For FDA/ISO 10993 compliance, specify medical-grade variants (e.g., Axson PX100 MED).

For exhaustive technical datasheets, consult Axson/Sartomer product documentation. Vacuum casting remains optimal for bridge manufacturing between prototyping and mass production, with PX100 balancing cost, speed, and fidelity.
Learn more about ABS type materials
Jucheng Precision Factory
Request Your DFM & Quote – Upload Your Drawings
ㆍFill in your requirements and upload your 2D&3D file, we will feedback your project quotation and DFM within 24 hours.
ㆍFile types: STEP, STP, IGES, IGS, SLDPRT, 3DM, SAT or X_T files File size: < 128 MB Part size: < 1500*1500*1500 mm
ㆍPrivacy: We respect your privacy. Here you can find an example of a non-disclosure agreement. By submitting this form, you agree to our terms & conditions and privacy policy.
Choose File
